HTF-50/HTF-500 High Pressure TGA

Integrated design of mechanics, circuits and atmosphere control.

The furnace is automatically raised and lowered with accurate positioning, which improves the repeatability of measurement.

Precise flow control of steam generators.

Mass flow meters precisely control gas flow.

The data survey and mapping are carried out automatically with powerful softwares processing data.

Temperature, and other indicators of quality software correction.

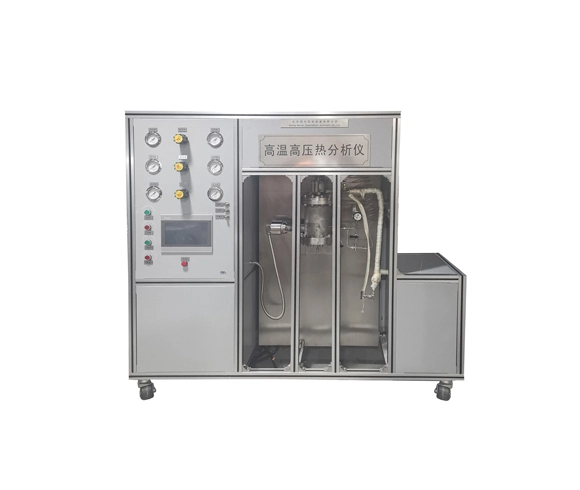

HTF series high pressure TGA is an advanced thermogravimetric analysis instrument that can measure the weight changes of substances under high-pressure, various gases or water vapor environments. The experimental temperature can reach up to 1300 ℃, and the maximum temperature-related pressure can reach 5MPa.

HTF series high pressure TGA has a large weight and sample capacity, making it very suitable for measuring representative samples or complete components of heterogeneous materials.

High pressure thermogravimetric analyzer, adopting advanced gas and steam injection, mixing, and pressure control systems, can ensure precise control of the reaction gas environment and integrate gas collection functions for analysis of escaping gases.

The sample temperature is measured by a thermocouple directly adjacent to the sample in the reaction gas. The temperature of the furnace and other parts of the reactor is measured using additional thermocouples. A fast PID temperature controller can achieve accurate control of sample temperature under various operating conditions.
